Incinolet Mounting Plate; PLA005
Incinolet Mounting Plate; PLA005
Incinolet Toilet Questions
Incinolet Toilet Questions
What power does the Incinolet need?
A dedicated 20 amp circuit. Choose 120 V at about 2000 W or 240 V at about 3500 W.
How many people can it support full time?
120 V model is about 4 people, 240 V model is about 6 people.
Does it use water or need a septic system?
No. It incinerates waste using electric heat and vents outside.
Do I need a bowl liner every time?
Yes, for every use. New units include one box of 200 liners. Bowl Liners can be purchased here.
How long is a cycle and can I use it during the cycle?
Heater runs about 60 to 75 minutes, the blower continues 20 to 40 minutes to cool. You can use it any time during a cycle, then press Start again.
How much electricity per cycle?
About 1.5 to 2.0 kWh per full cycle. Example at $0.20 per kWh is roughly $0.30 to $0.40 per cycle.
What can go in the toilet?
Human waste, toilet paper, and tampons. Do not burn trash or food. Use a liner each time.
How do I vent it?
Horizontal or vertical to outdoors, end with a dryer flap or rain cap. If total run is over 10 feet or uses more than two elbows, increase to 6 inch pipe, 15 feet max. Do not vent into an attic or crawl space.
Will there be odours?
Little to none with correct venting and by starting a cycle after each use. Overloading or poor venting can cause odor.
What happens during a power outage?
If a cycle stops mid-burn you may notice smoke or odour. Open a window. When power returns the fan restarts to cool the unit.
How often do I empty the ash and how do I dispose of it?
Empty when ash is light in color or no more than 2 inches deep. Dispose of cooled ash in household trash per local rules. Do not use it as fertilizer.
Can I run it from solar or a generator?
Technically yes, but we don't advise it. If your system supplies the continuous wattage on a dedicated 20 A circuit. Plan around 1.5 to 2.0 kWh per cycle.
Where can I install it and what clearances are needed?
Cabins, basements, bunkies, boats, RVs, and more. Allow room on the right side to operate the pedal and follow the manual’s clearance notes.
What is the warranty?
3 years on toilets having regular use and maintenance.
Do you offer pickup?
Pickup is available from our Beamsville showroom or our warehouse terminal, stock dependent.
Is Incinolet approved in my area?
Although CSA approved, requirements vary by province and municipality. Treat it as an electrical appliance install and check with your local Authority Having Jurisdiction and a licensed electrician. diction and a licensed electrician.
Shipping and delivery
Shipping and delivery
Every Incinolet toilet includes free shipping anywhere in Canada except Yukon, Northwest Territories, and Nunavut, for a flat shipping fee of $250.00.
Delivery Times
- 2–5 business days
- 2–7 business days
Parts & Accessories
Replacement parts and bowl liners ship via UPS and are subject to standard shipping fees.
Remote or Limited Addresses
If your shipping address is not accessible, please arrange delivery to the nearest post office, courier pickup point, or freight terminal.
Please note: we cannot ship to PO Boxes.
Purchase Orders
Purchase orders are accepted. Include your PO number in the order notes when checking out, and a PDF invoice will be provided after purchase.
Additional Information
Shipments should be inspected on arrival. Please notify us within 48 hours of any damage.
For freight deliveries, carriers may contact you to arrange a delivery time.
Weather and regional conditions can extend transit times, we recommend ordering early if you have a deadline.
Couldn't load pickup availability

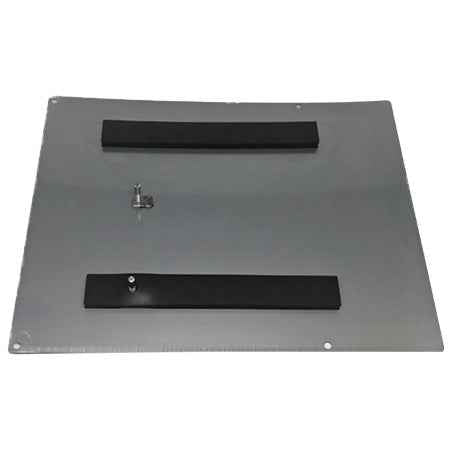

Secure your Incinolet for marine or mobile applications with this mounting plate. Attach the plate to the floor with 4 screws, then set the toilet down over the alignment pins. Integrated cushioning pads help absorb vibration in moving environments. The plate is included with the Coast Guard Certification add-on; for residential house installs, a mounting plate is not required. Note: the pads can create a slight “rocky” feel when seated; remove the pads if you need a rigid mount.
Key Features
Designed for mobile and marine use; helps stabilize the unit against movement and vibration.
Included with Coast Guard Certification; also available separately if needed.
Simple install: fasten plate with four floor screws; toilet drops onto guide pins for secure placement.
Cushioning pads reduce vibration; can be removed if a firmer, non-cushioned mount is preferred.
Not required for typical stationary house installations, reducing unnecessary cost and complexity.
Compatibility
Works with Incinolet units used in boats, RVs and other mobile settings. Serial numbers not required for selection; choose based on application environment (mobile or marine vs. residential).
What’s Included
1 × Incinolet mounting plate with alignment pins and attached cushioning pads (hardware per owner’s manual).
Installation & Care (Quick Tips)
Unplug the unit and clear the floor area.
Bolt the mounting plate to the floor using 4 screws appropriate for your substrate.
Lower the toilet onto the pins; check stability and clearances.
If seating feels “rocky,” remove the pads for a rigid mount per your preference.
Follow the owner’s manual for final checks and vent or electrical steps.
Specs
Application: marine or mobile stabilization plate with vibration-damping pads.
Inclusions: Coast Guard Certification add-on bundles the plate; sold separately otherwise.
SKU: PLA005
FAQs
Do I need this in a house?
No. For normal residential installations, Incinolet does not require a mounting plate. It is primarily for mobile or marine use.
Is the mounting plate included with Coast Guard Certification?
Yes. The plate is included when you select the Coast Guard Certification add-on, and can also be purchased separately.
Why does it feel a little “rocky”?
The cushioning pads are designed to absorb vibration; they may introduce slight movement. You can remove the pads if you prefer a rigid mount.
