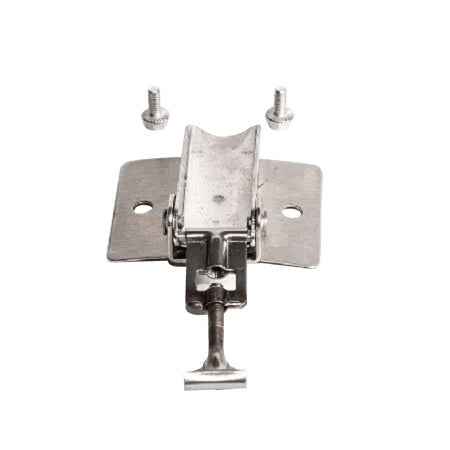

Incinolet Replacement Camlock Mechanism; CAM001
Incinolet Replacement Camlock Mechanism; CAM001
Incinolet Toilet Questions
Incinolet Toilet Questions
What power does the Incinolet need?
A dedicated 20 amp circuit. Choose 120 V at about 2000 W or 240 V at about 3500 W.
How many people can it support full time?
120 V model is about 4 people, 240 V model is about 6 people.
Does it use water or need a septic system?
No. It incinerates waste using electric heat and vents outside.
Do I need a bowl liner every time?
Yes, for every use. New units include one box of 200 liners. Bowl Liners can be purchased here.
How long is a cycle and can I use it during the cycle?
Heater runs about 60 to 75 minutes, the blower continues 20 to 40 minutes to cool. You can use it any time during a cycle, then press Start again.
How much electricity per cycle?
About 1.5 to 2.0 kWh per full cycle. Example at $0.20 per kWh is roughly $0.30 to $0.40 per cycle.
What can go in the toilet?
Human waste, toilet paper, and tampons. Do not burn trash or food. Use a liner each time.
How do I vent it?
Horizontal or vertical to outdoors, end with a dryer flap or rain cap. If total run is over 10 feet or uses more than two elbows, increase to 6 inch pipe, 15 feet max. Do not vent into an attic or crawl space.
Will there be odours?
Little to none with correct venting and by starting a cycle after each use. Overloading or poor venting can cause odor.
What happens during a power outage?
If a cycle stops mid-burn you may notice smoke or odour. Open a window. When power returns the fan restarts to cool the unit.
How often do I empty the ash and how do I dispose of it?
Empty when ash is light in color or no more than 2 inches deep. Dispose of cooled ash in household trash per local rules. Do not use it as fertilizer.
Can I run it from solar or a generator?
Technically yes, but we don't advise it. If your system supplies the continuous wattage on a dedicated 20 A circuit. Plan around 1.5 to 2.0 kWh per cycle.
Where can I install it and what clearances are needed?
Cabins, basements, bunkies, boats, RVs, and more. Allow room on the right side to operate the pedal and follow the manual’s clearance notes.
What is the warranty?
3 years on toilets having regular use and maintenance.
Do you offer pickup?
Pickup is available from our Beamsville showroom or our warehouse terminal, stock dependent.
Is Incinolet approved in my area?
Although CSA approved, requirements vary by province and municipality. Treat it as an electrical appliance install and check with your local Authority Having Jurisdiction and a licensed electrician. diction and a licensed electrician.
Shipping and delivery
Shipping and delivery
Every Incinolet toilet includes free shipping anywhere in Canada except Yukon, Northwest Territories, and Nunavut, for a flat shipping fee of $250.00.
Delivery Times
- 2–5 business days
- 2–7 business days
Parts & Accessories
Replacement parts and bowl liners ship via UPS and are subject to standard shipping fees.
Remote or Limited Addresses
If your shipping address is not accessible, please arrange delivery to the nearest post office, courier pickup point, or freight terminal.
Please note: we cannot ship to PO Boxes.
Purchase Orders
Purchase orders are accepted. Include your PO number in the order notes when checking out, and a PDF invoice will be provided after purchase.
Additional Information
Shipments should be inspected on arrival. Please notify us within 48 hours of any damage.
For freight deliveries, carriers may contact you to arrange a delivery time.
Weather and regional conditions can extend transit times, we recommend ordering early if you have a deadline.
Couldn't load pickup availability
Secure your ashpan for safe, low-odour operation with the Incinolet Camlock Mechanism. This replacement latch holds the ashpan firmly in place to help maintain the front seal, reduce smoke or odour leaks, and support efficient incineration. Visually match the latch location beside the ashpan opening; serial numbers are not required.
Key Features
Locks the ashpan to the body for a reliable seal, supports clean, efficient burns.
Simple operation, lift to hook under the ashpan handle; press down to latch. Repeat after each ashpan service.
OEM part name, “Camlock Mechanism”, SKU CAM001.
Helps minimize nuisance smoke or odour caused by a loose or mis-latched ashpan.
Compatibility
Fits Incinolet units that use an ashpan; voltage is not applicable. Match by part location and design shown in the manual figure.
What’s Included
1 × Camlock Mechanism, SKU CAM001.
Installation & Care (Quick Tips)
Unplug the unit before any service.
Remove the ashpan. To reinstall, push the ashpan firmly into place; lift the ashpan handle and engage the camlock hook under it, then push the camlock handle down to lock. Replace the ashpan panel.
Check latch engagement after each ashpan emptying for consistent sealing and performance.
Specs
Part name: Camlock Mechanism; SKU: CAM001.
Function: Mechanical latch for ashpan retention; located at the ashpan opening as shown in Fig. 9.
FAQs
What does the camlock mechanism do?
It is the latch that secures the ashpan to the toilet body; correct latching helps maintain the seal and minimize odor.
How do I use it after emptying the ashpan?
Push the ashpan fully in, lift the ashpan handle, hook the camlock under the handle, press the camlock handle down to lock; then close the panel.
Is this part tied to voltage or serial numbers?
No, it is a mechanical latch. Select by part name and fit; match visually to the manual figure.
