Incinolet Replacement Catalyst, 1/4 lb Bag; CAT003
Incinolet Replacement Catalyst, 1/4 lb Bag; CAT003
Incinolet Toilet Questions
Incinolet Toilet Questions
What power does the Incinolet need?
A dedicated 20 amp circuit. Choose 120 V at about 2000 W or 240 V at about 3500 W.
How many people can it support full time?
120 V model is about 4 people, 240 V model is about 6 people.
Does it use water or need a septic system?
No. It incinerates waste using electric heat and vents outside.
Do I need a bowl liner every time?
Yes, for every use. New units include one box of 200 liners. Bowl Liners can be purchased here.
How long is a cycle and can I use it during the cycle?
Heater runs about 60 to 75 minutes, the blower continues 20 to 40 minutes to cool. You can use it any time during a cycle, then press Start again.
How much electricity per cycle?
About 1.5 to 2.0 kWh per full cycle. Example at $0.20 per kWh is roughly $0.30 to $0.40 per cycle.
What can go in the toilet?
Human waste, toilet paper, and tampons. Do not burn trash or food. Use a liner each time.
How do I vent it?
Horizontal or vertical to outdoors, end with a dryer flap or rain cap. If total run is over 10 feet or uses more than two elbows, increase to 6 inch pipe, 15 feet max. Do not vent into an attic or crawl space.
Will there be odours?
Little to none with correct venting and by starting a cycle after each use. Overloading or poor venting can cause odor.
What happens during a power outage?
If a cycle stops mid-burn you may notice smoke or odour. Open a window. When power returns the fan restarts to cool the unit.
How often do I empty the ash and how do I dispose of it?
Empty when ash is light in color or no more than 2 inches deep. Dispose of cooled ash in household trash per local rules. Do not use it as fertilizer.
Can I run it from solar or a generator?
Technically yes, but we don't advise it. If your system supplies the continuous wattage on a dedicated 20 A circuit. Plan around 1.5 to 2.0 kWh per cycle.
Where can I install it and what clearances are needed?
Cabins, basements, bunkies, boats, RVs, and more. Allow room on the right side to operate the pedal and follow the manual’s clearance notes.
What is the warranty?
3 years on toilets having regular use and maintenance.
Do you offer pickup?
Pickup is available from our Beamsville showroom or our warehouse terminal, stock dependent.
Is Incinolet approved in my area?
Although CSA approved, requirements vary by province and municipality. Treat it as an electrical appliance install and check with your local Authority Having Jurisdiction and a licensed electrician. diction and a licensed electrician.
Shipping and delivery
Shipping and delivery
Every Incinolet toilet includes free shipping anywhere in Canada except Yukon, Northwest Territories, and Nunavut, for a flat shipping fee of $250.00.
Delivery Times
- 2–5 business days
- 2–7 business days
Parts & Accessories
Replacement parts and bowl liners ship via UPS and are subject to standard shipping fees.
Remote or Limited Addresses
If your shipping address is not accessible, please arrange delivery to the nearest post office, courier pickup point, or freight terminal.
Please note: we cannot ship to PO Boxes.
Purchase Orders
Purchase orders are accepted. Include your PO number in the order notes when checking out, and a PDF invoice will be provided after purchase.
Additional Information
Shipments should be inspected on arrival. Please notify us within 48 hours of any damage.
For freight deliveries, carriers may contact you to arrange a delivery time.
Weather and regional conditions can extend transit times, we recommend ordering early if you have a deadline.
Couldn't load pickup availability

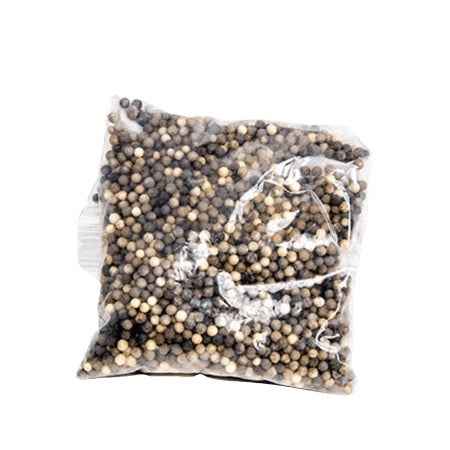

Refresh smoke and odour control in your Incinolet with this Catalyst, 1/4 lb bag. These heat-activated platinum pellets help the blower scrub exhaust as it passes through the catalyst chamber for cleaner, low-odour operation. Pellets sit in a built-in chamber near the blower; routine replacement is not normally required, but it can help when exterior odour persists despite a clean unit.
Key Features
Heat-activated platinum catalyst pellets, suppress smoke and odor during each cycle.
OEM media, 1/4 lb bag, CAT003 part reference.
Pellets reside in a chamber within the incinerator walls near the blower, optimized for airflow through the catalyst.
Normally not replaced on a schedule; replace if odor remains and the interior is clean, or if pellets have packed and airflow is restricted.
Works across Incinolet models, 120V and 240V, not tied to serial ranges.
Compatibility
All Incinolet units, 120V and 240V; verify by application rather than serial number. Part reference CAT003.
What’s Included
1 × Catalyst, 1/4 lb bag (platinum type pellets).
Installation & Care (Quick Tips)
Unplug the unit before service.
Access the catalyst chamber; the crescent-shaped cover is held with two small nuts, then add or replace pellets as directed in the manual. Reinstall the cover and test.
For best results, keep the blower wheel and housing clean every 3–6 months; this supports airflow through the catalyst.
Specs
Type: Heat-activated platinum catalyst pellets.
Quantity: 1/4 lb, CAT003.
FAQs
Do I need to replace the catalyst regularly?
No routine schedule is required; replace when exterior odour is present even though the interior is clean, or when pellets are packed and airflow is restricted.
Where is the catalyst located?
Inside a chamber within the incinerator walls near the blower, with a crescent-shaped cover secured by two small nuts.
Will this work with both 120V and 240V units?
Yes; the 1/4 lb catalyst, part CAT003, is listed for both 120V and 240V units.
