Incinolet Replacement ITS Blower Thermostat, F130; THE014
Incinolet Replacement ITS Blower Thermostat, F130; THE014
Incinolet Toilet Questions
Incinolet Toilet Questions
What power does the Incinolet need?
A dedicated 20 amp circuit. Choose 120 V at about 2000 W or 240 V at about 3500 W.
How many people can it support full time?
120 V model is about 4 people, 240 V model is about 6 people.
Does it use water or need a septic system?
No. It incinerates waste using electric heat and vents outside.
Do I need a bowl liner every time?
Yes, for every use. New units include one box of 200 liners. Bowl Liners can be purchased here.
How long is a cycle and can I use it during the cycle?
Heater runs about 60 to 75 minutes, the blower continues 20 to 40 minutes to cool. You can use it any time during a cycle, then press Start again.
How much electricity per cycle?
About 1.5 to 2.0 kWh per full cycle. Example at $0.20 per kWh is roughly $0.30 to $0.40 per cycle.
What can go in the toilet?
Human waste, toilet paper, and tampons. Do not burn trash or food. Use a liner each time.
How do I vent it?
Horizontal or vertical to outdoors, end with a dryer flap or rain cap. If total run is over 10 feet or uses more than two elbows, increase to 6 inch pipe, 15 feet max. Do not vent into an attic or crawl space.
Will there be odours?
Little to none with correct venting and by starting a cycle after each use. Overloading or poor venting can cause odor.
What happens during a power outage?
If a cycle stops mid-burn you may notice smoke or odour. Open a window. When power returns the fan restarts to cool the unit.
How often do I empty the ash and how do I dispose of it?
Empty when ash is light in color or no more than 2 inches deep. Dispose of cooled ash in household trash per local rules. Do not use it as fertilizer.
Can I run it from solar or a generator?
Technically yes, but we don't advise it. If your system supplies the continuous wattage on a dedicated 20 A circuit. Plan around 1.5 to 2.0 kWh per cycle.
Where can I install it and what clearances are needed?
Cabins, basements, bunkies, boats, RVs, and more. Allow room on the right side to operate the pedal and follow the manual’s clearance notes.
What is the warranty?
3 years on toilets having regular use and maintenance.
Do you offer pickup?
Pickup is available from our Beamsville showroom or our warehouse terminal, stock dependent.
Is Incinolet approved in my area?
Although CSA approved, requirements vary by province and municipality. Treat it as an electrical appliance install and check with your local Authority Having Jurisdiction and a licensed electrician. diction and a licensed electrician.
Shipping and delivery
Shipping and delivery
Every Incinolet toilet includes free shipping anywhere in Canada except Yukon, Northwest Territories, and Nunavut, for a flat shipping fee of $250.00.
Delivery Times
- 2–5 business days
- 2–7 business days
Parts & Accessories
Replacement parts and bowl liners ship via UPS and are subject to standard shipping fees.
Remote or Limited Addresses
If your shipping address is not accessible, please arrange delivery to the nearest post office, courier pickup point, or freight terminal.
Please note: we cannot ship to PO Boxes.
Purchase Orders
Purchase orders are accepted. Include your PO number in the order notes when checking out, and a PDF invoice will be provided after purchase.
Additional Information
Shipments should be inspected on arrival. Please notify us within 48 hours of any damage.
For freight deliveries, carriers may contact you to arrange a delivery time.
Weather and regional conditions can extend transit times, we recommend ordering early if you have a deadline.
Couldn't load pickup availability

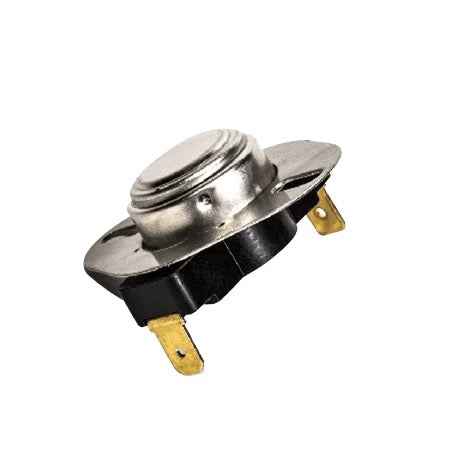

Restore proper cool-down airflow and odor control to your Incinolet with this ITS Blower Thermostat, F130. During each cycle, it lets the blower continue running after the heater turns off, then shuts the blower off once the unit cools to about 130°F, helping prevent smoke and protecting components. For correct fit, visually match the part and confirm its location behind the access panel on the right side of the unit.
Key Features
Controls blower cool-down at approximately 130°F, supports efficient incineration and odour reduction.
OEM part identification, ITS Blower Thermostat F130, SKU THE014.
Easy access through the side access panel; replace with power disconnected.
Helps maintain proper airflow after each burn, reducing overheating and room odor when venting is set up correctly.
Compatibility
Works with Incinolet units that use the ITS blower thermostat; not tied to voltage or serial ranges. Verify by location and appearance.
What’s Included
1 × Thermostat, ITS Blower, F130; SKU THE014.
Installation & Care (Quick Tips)
Unplug the unit before service.
Remove the right-side access panel to reach the ITS blower thermostat; disconnect leads, swap the thermostat, reassemble.
If blower behaviour does not match the manual’s description, for example not running long enough to cool or not turning off after cool-down, inspect or replace the ITS thermostat.
Specs
Type: ITS Blower Thermostat, F130 set point ~130°F.
SKU: THE014; Approx. Weight: 0.0625 lb; Dimensions: ~2 × 2 × 1 in.
FAQs
What does the ITS blower thermostat do?
It allows the blower to continue running after the heater turns off, then stops the blower when the unit cools to about 130°F, typically 20 to 40 minutes after the heat cycle.
How do I access it for replacement?
Remove the four screws on the right-side access panel; the ITS blower thermostat is located just left of the heater terminals inside that opening.
Is this part voltage-specific?
No. It is a mechanical thermostat used across Incinolet configurations; match by part name and location, not by voltage.
